•The secret to cool bodies and glazes is a lot of testing.
•The secret to know what to test is material and chemistry knowledge.
•The secret to learning from testing is documentation.
•The place to test, do the chemistry and document is an account at https://insight-live.com
•The place to get the knowledge is https://digitalfire.com
Sign-up at https://insight-live.com today.
Vitrification is the solidification of a melt into a glass rather than a crystalline structure (crystallization). Glass, clay bodies and glazes vitrify, but in ceramics use of the term focuses most on clay bodies.
Vitrification is a process. Bodies do not have specific vitrification points. As clay is fired hotter and hotter, it reaches a point where, if cooled from there, it will produce ware of sufficient density and strength as to be useful for the intended purpose. A clay that has been fired sufficiently dense and strong for the purpose intended is said to be 'mature'.
In some applications vitrification is considered necessary to attain the needed strength or appearance. The state of being vitreous for a buff stoneware might be 1.5% porosity. For a hard porcelain, zero percent is considered vitreous. A terra cotta body may be considered vitreous at cone 1 where it has 3-5% porosity. However actually firing any of these bodies to these degrees of vitrification can require more attention to the process and bring more problems (e.g. warping, blistering) than a manufacturer can actually handle in a practical way. For this reason, semi-vitreous (higher porosity) is often considered sufficiently strong and durable, especially when the glaze on the ware fits well, is hard and durable. In fact, many people use poorly fitted or melted glazes on a vitreous body, producing ware that is actually less functional than if they had a better glaze on a less vitreous body.
That being said, generally vitrified commercial bodies have better glaze interfaces and fit. However some bodies that appear vitrified (because porosity is low) are actually over-fired. Black burning, manganese-stained bodies are an example. If they reach near-zero porosity at cone 5, for example, and you fire to cone 6, the ware can be brittle (easily broken by thermal shock or stress). Another complication is that, because decomposition is occurring in the body, gases are generated that the glaze melt must absorb and pass. These are obvious in transparent glazes but opaques, although appearing smooth, can be Aero-chocolate-like inside. The thin glass layer hiding bubbles immediately below the surface can rupture producing tiny “sink holes” as the surface wears or experiences stress. Glazes that melt late normally minimize entrained bubbles that most bodies are finished generating much earlier, but when bodies are over vitrified, these and other issues arise.
When a porcelain is fired to higher and higher temperatures it densifies and shrinks. The porosity curve representing this flattens toward horizontal as it approaches down to the zero point. Depending on the body formulation, this zero-porosity density can maintain over several cones as the body softens and approaches melting. Subsequently, as melting ensues, bubbles will develop in the matrix, as materials decompose, and the ware will actually expand in size. In a translucent porcelain, the body is fired to a point beyond where the porosity curve hits zero, but not so far along the curve that warping cannot be managed or ware becomes brittle. With a stoneware, the situation is different, they usually cannot be fired to zero porosity without bloating, perhaps the minimum achievable porosity is 1%. In addition, the curve representing the drop in porosity as temperatures rise dwells at the minimum over a much shorter period and rises more abruptly with temperature increase beyond complete vitrification. Thus ware must be fired to a point before the porosity curve hits the minimum achievable. Low fire bodies have an even more volatile vitrification curve, so volatile that firing is not normally taken anywhere near the low curve point.
Thus, it is not possible to calculate the vitrification temperature of a body from the chemistry. It is a matter of physics and testing. Using an account at insight-live.com you can document a series of tests altering the feldspar content, fire test bars at a range of temperatures and measure their porosities and fired shrinkages. From the data from a series of tests you will be able to create a recipe that targets a specific temperature with a compromise of fired density but still having stability against warping during firing.
On highly vitrified bodies (e.g. translucent porcelains) it is possible to produce a food-safe and functional surface (surfaces that will not stain and can be effectively cleaned). However be cautious about this. It is best to use bodies made from high quality clays that have been wet-processed (and therefore water washed). These are more expensive but do not require barium additions to precipitate soluble salts.
Some bodies cannot be fired to even near zero porosity
Bloating in an over fired middle temperature high iron raw clay (Plainsman M2). It is still stable, dense and apparently strong at cone 4 (having 1.1% porosity). But between cone 6 and 7 (top bar) it is already bloating badly. Such clays must be fired at low enough temperatures to avoid this volatility (if accidentally over fired). This clay only reaches a minimum of 1% porosity (between cone 4 and 5), it is not possible to fire it to zero porosity. This is because of the particulate gas-producing particles (it is ground to 42 mesh only).
Test bars of different terra cotta clays fired at different temperatures
Bottom: cone 2, next up: cone 02, next up: cone 04. You can see varying levels of maturity (or vitrification). It is common for terra cotta clays to fire like this, from a light red at cone 06 and then darkening progressively as the temperature rises. Typical materials develop deep red color around cone 02 and then turn brown and begin to expand as the temperature continues to rise past that (the bottom bar appears stable but it has expanded alot, this is a precursor to looming rapid melting). The top disk is a cone 10R clay. It shares an attribute with the cone 02 terra cotta. Its variegated brown and red coloration actually depends on it not being mature, having a 4-5% porosity. If it were fired higher it would turn solid chocolate brown like the over-fired terra cotta at the bottom.
What often happens when already vitrified ware is refired?
Bloating. These teapots have been refired to cone 6.
Is Lincoln 60 really a fireclay? Simple physical testing says...
Materials are not always what their name suggests. These are Lincoln Fireclay test bars fired from cone 6-11 oxidation and 10 reduction (top). The clay vitrifies progressively from cone 7 upward (3% porosity at cone 7 to 0.1% by cone 10 oxidation and reduction, bloating by cone 11). Is it a really fireclay? No.
The difficulty of vitrifying the base of heavy stoneware
This 1 gallon heavy crock was fired to cone 6 (at 108F/hr during the final 200 degrees) and soaked 20 minutes (in a electric kiln). The bare clay base should be the color of the top test bar (which has gone to cone 6). Yet, it is the color of the bottom bar (which has gone to cone 4)! That means the base only made it to cone 4. The vertical walls are the right color (so they made cone 6). It may seem that this problem could be solved by simply firing with a longer hold at cone 6. But electric kilns heat by radiation, that base will never reach the same temperature as the sidewalls!
A novel way to compare degree of porcelain vitrification
These two unglazed porcelain tiles appear to have a similar degree of vitrification, but do they? I have stained both with a black marker pen and then cleaned it off using acetone. Clearly the one on the right has removed better, that means the surface is more dense, it is more vitreous. In industry (e.g. porcelain insulators) it is common to observe the depth of penetration of dye or ink into the matrix as an indication of fired maturity.
The best firing temperature for this body?
This cone 6 brown functional stoneware has been fired across a range of temperatures. Cone 4 is too porous. From cone 7 it is expanding and density is not improving, it will likely warp or bloat. Cone 7 is losing the red color, there is no room for over-firing (by accident). The porosity at cone 6 is so much better than cone 5 and color is still stable. Therefore, cone 6 is the one we want.
Some iron clays bloat before reaching zero porosity, others do not
A very fine particled low fire red burning terra cotta clay (Plainsman Redearth) fired at cone 2,3 and 4 (top to bottom). Notice the cone 4 bar is beginning the melting process (signaled by the fact that it is expanding). Yet it is not bloating as this type of raw clay normally would. The cone 2 and three bars have reached zero porosity also. Other clays that fire to very similar color begin to bloat long before they reach zero porosity.
How much does the size of a piece change when it is bisque fired? Glaze fired?
Three mugs. Dry. Bisque fired. Glaze fired. Notice the shrinkage at each stage (these were the same size in the dry state).
A porcelain mug warps under the weight of its own handle
An example of a cone 10 porcelain that is over mature. It contains too much feldspar and is vitrifying so much that it is beginning to melt. The weight of the handle is pulling the lip into a oval shape, even though the hourglass shape of the piece should offer stability.
Cone 6 iron stoneware cross section close-up with glaze
The glaze is well melted, but the interfacial zone with the body is wider than terra cotta but much narrower than for porcelain. The body is developing glassy phases as does porcelain and stoneware and its color has changed from red to brown. However it is possible to add a frit and glass-bond the particles at cone 02 (at much higher cost of course). Not surprisingly, glazes must be more closely tuned to match the thermal expansion of the body for lower temperatures (since they are not stuck on as well).
What are the two key causes of firing warpage in porcelain?
Here is an example of how a profile having no inherent strength can warp during firing (the one on the left is just bisque fired, the one on the right is fired beyond zero porosity to achieve translucency). Two key factors contribute to this failure: This porcelain is highly vitreous. This shape is vulnerable to warping. If the lip were flared out, for example, it would have much more strength to stay round. If the porcelain was less vitreous it would warp less. Of the two factors, which contributes more to the warping for this specific piece? The shape.
Iron oxide goes crazy in reduction
Cone 6 iron bodies that fire non-vitreous and burn tan or brown in oxidation can easily go dark or vitreous chocolate brown (or even melting and bloated in reduction). On the right is Plainsman M350, a body that fires light tan in oxidation, notice how it burns deep brown in reduction at the same temperature. This occurs because the iron converts to a flux and the glass development that occurs brings out the dark color. On the left is Plainsman M2, a raw high iron clay that is quite vitreous in oxidation, but in reduction it is bloating badly. When reduction bodies are this vitreous there is a much great danger of black coring.
The difference between vitrified and sintered
The top fired bar is a translucent porcelain (made from kaolin, silica and feldspar). It has zero porosity and is very hard and strong at room temperature (because fibrous mullite crystals have developed around the quartz and kaolinite grains and feldspar silicate glass has flowed within to cement the matrix together securely). That is what vitrified means. But it has a high fired shrinkage, poor thermal shock resistance and little stability at above red-heat temperatures. The bar below is zirconium silicate plus 3% binder (VeeGum), all that cements it together is sinter-bonds between closely packed particles (there is no glass development). Yet it is surprisingly strong, it cannot be scratched with metal. It has low fired shrinkage, low thermal expansion and maintains its strength and hardness at very high temperatures.
You will not believe the secret of translucency at cone 6
Three cone 6 mugs. All have zero porosity. Why is the middle one so translucent? Three reasons. 1. It has 10% more feldspar than the one on the left and reaches zero porosity already at cone 5. 2. It employs New Zealand china clay while the one on the left contains high-TiO2 #6 Tile kaolin. But this is also true for the one on the right. The third difference is the key. 3. The center one contains 4% Veegum T plasticizer (while the other two use standard bentonite). This is surprising when I tell you one more thing: The mug on the right also contains 3% Ferro Frit 3110. That means that the frit does not have near the fluxing power of the VeeGum!
The strange vitrification profile of a talc body
This body is made from approximately 50:35:15 ball clay:talc:silica:silica sand. These test bars are fired from cone 2 to 9 oxidation (bottom to top) and 10 Reduction and from them the porosity and fired shrinkage can be measured (shown for each bar). Notice that the fired shrinkage is pretty stable from cone 2 to 8, but accelerates at cone 9 oxidation. But in reduction this stage has not been reached yet. The same thing happens with porosity, the cone 9 bar is dramatically more dense than the cone 8 one. But in reduction, it is still porous.
Stoneware from your terra cotta body? Is is very possible.
Some terra cotta clays can be used to produce stoneware by firing them a few cones higher. Terra Cottas are almost always nowhere near vitrified at their traditional cone 04-06 temperatures, so they can often stand much higher firing. However, clear glazes do not usually work well in higher firing since products of decomposition from the vitrifying body fill them will micro bubbles, clouding the surface. In addition, the body turns dark brown under clear glazes. But with a white glaze, these are not a problem. This is Plainsman L210 fired to cone 2. The glaze is 80% Frit 3195, 20% kaolin and 10-12% zircopax, it fires to a brilliant flawless surface.
Cone 6 whiteware vs. vitreous porcelain when it breaks
The porcelain on the right (Plainsman Polar Ice), breaks much more like glass, to razor sharp-knife edges. But it is not a glass, it is a zero-porosity, dense matrix of glass-bonded crystals. The whiteware on the left (Plainsman M370) has 1% porosity, and although vitreous and quite strong, clearly it is not in the same class as the one on the right.
A highly fluxed body, when over fired can do this!
These two mugs are made from the same material: Ravenscrag Slip plus 20% Ferro Frit 3134. The one on the right has been bisque fired to 1550F. The one on the left has been clear glazed and fired to cone 03 (1950F). That means that this body vitrifies well below cone 03, likely well below cone 06. Thus strength, maturity, vitrification are not a matter of temperature, they are a matter of how much flux is available in the body to mature it to a dense, strong matrix.
By hand-building your mugs you can cut the weight in half!
The one on the left weighs 176 grams. The right one is thrown and weighs 376 grams. Of course the body needs to vitrify well to be strong enough to produce a durable product. But not vitrify so much that the weight of the handle pulls the rim to a oval shape during firing.
Two bars ready for pyro-plastic comparison test
When porcelains mature in the kiln they progress toward vitrification, getting softer. This simple test enables anyone to quantify the degree to which a porcelain is likely to warp. Bars of plastic clay almost never dry straight, so the measurement (in mm) to which they deviate from straight is recorded and the bar is mounted with the hump upwards. After firing the mm of firing deviation-from-straight are added to the dry value to derive a total pyro-plastic deformation measurement. This can be recorded as an absolute value for comparison with other clays or temperatures.

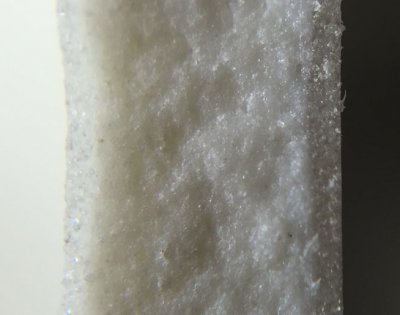

Cross section view of the inside and outside glazed walls of a porcelain vessel
Porcelains look much more glassy and melted than you might expect when viewed close up (this is cone 6 Polar Ice from Planisman Clays). The development of the glassy phase within the body creates a very good bond with the glaze. Actually it is a bonding zone where the glaze has melted into the body enough to create a transition rather than just a point of contact. The degree to which this transition develops determines the integrity of the bond. Of course, with porcelains it is far better developed than with stonewares and terra cottas.
Cone 04 terra cotta cross section close-up with glaze
The glaze is well melted, but the interfacial zone with the body is very narrow. It is basically just stuck on the surface. The body is not developing any clearly visible glassy phases as does porcelain and stoneware, so not surprisingly, its strength is much lower than vitrified clay bodies at higher temperatures. However it is possible to add a frit and glass-bond the particles at cone 02 (at much higher cost of course). Not surprisingly, glazes must be more closely tuned to match the thermal expansion of the body for lower temperatures (since they are not stuck on as well).
The foot ring on the left is plucking, the right one is not. Why?
These are translucent porcelains, they are vitreous. The firing is to cone 10. The one on the left is a cone 6 body, and, while it survives to cone 10 it does warp. But more important, it is much more vitreous (more melted). The plucking problem makes it quite difficult to get a good foot ring. The other, which has only slight plucking, is also quite vitreous (high in feldspar). The plucking problem on both can be solved by simply using a better kiln wash. What is better? More refractory, and therefore having a powdery, non-stick surface. Spend more money on your kiln wash, base it on calcined alumina or zircon.
Particle size and LOI determine behaviour of over-fired bodies
These are four terra cotta body disks that have been fired to cone 10 reduction. The fluxing action of the iron has assisted to take them well along in melting. Notice that one is hardly bubbling at all, it is Redart clay that has been ground to 200 mesh (the lower right one is a body mix of 200 mesh materials also containing it). The upper left one is bubbling alot more. Why? Not just because it is melted more (in fact, the one on the lower left is the most melted). It is a body made from clays that have been ground to 42 mesh. Among the particles are larger ones that generate gases as they decompose. Yes, the particles in the others do the same, but their smaller size enables earlier decomposition and expulsion of smaller gas amounts distributed at many more vents. Some bodies cannot be fired to a point of zero porosity, they will bubble before they get there.
Which is stronger: Cone 10R mug or cone 03 mug?
The mug on the left is high temperature Plainsman P700 (Grolleg porcelain). The other is Plainsman Zero3 fired at cone 03. Zero3 has a secret: Added frit which reduces the porosity of the terra cotta base (therefore increasing the density) dramatically. How? The frit melts easily at cone 03 and fills the interparticle space with glass, that glass bonds everything together securely as the piece cools. Although I do not have strength testing equipment right now, I would say that although the P700 mug likely has a harder surface, the Zero3 one is less brittle and more difficult to break.
Non-vitreous bodies break very differently than vitreous ones
The particles in low temperature bodies are not glass-bonded, they only have sinter bonds. Broken edges will only be sharp if there is a glaze. They tend to break off in pieces rather than shatter.
Can a cone 03 porcelain be better than a cone 10R one? Yes!
Want to make this incredible porcelain and glaze yourself? Read on. The mug on the left is a cone 10R (2350F/1290C) porcelain (#6 Tile kaolin and Nepheline Syenite) with G1947U clear glaze. The other is a fritted cone 03 (1950F or 1065C) porcelain (NZ Kaolin, Ferro Frit 3110) with G2931K clear glaze. We call the body/glaze/firing system "Zero3" (google it or use the links here). The Zero3 porcelain is blue-white instead of grey, the glaze is crystal clear, underglaze colors are so much more vibrant. The Zero3 mug was fired in 3 hours (cold-to-cold). It also withstands thermal shock better, it is as strong or stronger and much more translucent. How is this possible? The magic of the frit, it melts so much better than nepheline. The recipes and method are linked here. It is the most expensive body you will ever make. But from it you will create the highest quality ware you have ever made using the most plastic body you have ever thrown! Follow the instructions carefully.
A vitreous sculpture clay. Vitreous enough for functional ware!
The chocolate brown burning super-plastic base clay (to which 20% coarse grog is added) matures at cone 6. Yet this is a cone 10R body. The grog stabilizes the fired matrix enough that it stands up in the kiln. And it fires to a dense product that can withstand any weather. Any porosity that can be measured is only from the grog. A number of manufacturers around the world make bodies like this, some can have almost double the grog this one has. These employ engobes (a brown and a blue, applied at the leather hard stage - L3954N) on the insides, enabling a smoother glaze surface.
Mother Nature's Porcelain - From a Cretaceous Dust Storm!
Plainsman Clays did 6 weeks of mining in June-July 2018 in Ravenscrag, Saskatchewan. We extracted marine sediment layers of the late Cretaceous period. The center portion of the B layer is so fine that it must have wind-transported (impossibly smooth, like a body that is pure terrasig)! The feldspar and silica are built-in, producing the glassiest surface I have ever seen (despite this, pieces are not warping in the firings at cone 6). I have not glazed the outside of this mug for demo purposes (a practice sure to fail in a crack when hot coffee is poured in).
Vitrification can be obvious by simple visual inspection
The unglazed surface of the left piece has a sheen, it is a product of glass development during firing to cone 6. That body is a 50:50 mix of a cone 8 stoneware and a low fire earthenware red (a material that would normally be melted by this temperature). Together they produce this dense, almost zero-porosity ceramic. The unglazed surface on the right looks more like plaster, and it is absorbent, about 5% porosity. It is a mix of the same stoneware but with 50% ball clay. The refractory ball clay assures that the stoneware, which was already inadequately vitreous, is even more so. As you can imagine, the left piece is far stronger.
Vitreous cone 6 stoneware. How?
Producing a zero-porosity cone 6 stoneware is not as easy as you might think. People expect stonewares to be plastic and fit glazes well. That means there needs to be lots of ball clay and silica in the recipe. These are refractory materials and they don't leave much room for the material that produces the vitrification: Feldspar. If the body does not need to be white there is another interesting approach: Use a red terra cotta material to supply plasticity and maturity. In this case I have made a 50:50 mix of a red-burning, super plastic, low fire clay (Plainsman BGP) with a refractory white-burning ball clay (Plainsman 3C). The result vitrifies to a zero-porosity, beautiful light tan body that even glistens in the light. One problem: Fired shrinkage. This body shrinks almost 17% from wet to fired.
This mug has waterlogged because it is not vitrified
Notice the water has wicked up to about 1 cm from the rim (the piece sat in water overnight). The glaze fits so there are no cracks for the water to seep through. However, being fired at cone 04, the body is quite porous. The piece has a unglazed base. Notice the water even travelled up the handle. Less exposed bare clay on the base would improve the situation somewhat, however it would be much better to choose a body that vitrifies sufficiently dense so that it does not absorb water (or fire to a higher temperature). There is a not-so-obvious issue here also: Although this piece did not explode in the microwave, it got incredibly hot. Amazingly, through all of this, the glaze has not crazed. It is G3879.
Why does transparently glazed terra cotta look better at cone 03 than 04?
Terra cotta bodies typically develop richer color at cone 03 and fire much stronger. Glazes melt better and thus micro-bubbles pass through easier, this produces better transparency and a more brilliant surface. Notice that crazing is beginning on the one of the left. But because of better body:glaze interface and development of better vitrification the one on the right is not crazing. Cone 03 is somewhat of a sweet-spot for this specific body, firing higher begins decomposition processes that generate gases that disrupt the surface. Needless to say, accurate firing is needed to fire at cone 03 with ongoing success.
Out Bound Links
- (Glossary) Porcelain
Traditional utilitarian porcelains are comparatively white burning and vitreous clay bodies that are made from feldspar, clay and quartz. When fired, the feldspar flows and dissolves many of the other particles into a viscous glassy melt that bonds the quartz particles and, and if temperatures are s...
- (Glossary) Bone China
True bone china is a special type of translucent porcelain. Instead of feldspar as a flux, bone ash is used (today available in synthetic form tri-calcium phosphate). A typical recipe is 50% bone ash, 25% Cornwall Stone and 25% kaolin. The quality of the porcelain hinges on the quality of the materi...
- (Glossary) Crystallization
When ceramic melts are cooled they prefer to solidify as an organized molecular structure. Given sufficient time and sympathetic chemistry, they will form a crystalline structure. But if cooling is faster they solidify as a glass. Crystals can grow in cooling glaze melts if one or more of the fol...
In Bound Links
- (Glossary) Clay
The term 'clay' is used in different ways. Potters often refer to their 'clays', these are typically recipes or mixtures of clay minerals, feldspar and quartz (more correctly these are clay bodies, or, just bodies). A lump of the material that has been mined from a deposit is also referred to as 'a ...
- (Project) Properties
A property in this context is a created physical phenomenon in a glaze or body that can be achieved in a variety of ways (called mechanisms). For example, there are a number of ways to suspend a glaze...
- (Glossary) Functional
A functional clay body is one that produces a ceramic that is durable. However there are a number of caveats with this. First, the item must maintain that strength and durability in service (degradation is common e.g. because of water logging). Of course, the body has to be fired sufficiently high t...
- (Glossary) Translucency
Translucent porcelain enables the passage of light through the wall of the item. Bone china is translucent. However it is so vitreous that pieces cannot support their own weight during firing, this requires bisque firing in setters to hold the shape at high temperature followed by glazing at low tem...
- (Glossary) Abrasion Ceramics
Abrasion ceramics can refer to two things: Products that resist abrasion because they are hard (more correctly these are actually abrasion-resistant ceramics) and products that abrade other materials because they are harder. Of course, even every-day porcelain surfaces are very durable. The hard...
- (Glossary) Maturity
A term referring to the degree to which a clay or glaze has vitrified or sintered during the firing. A 'mature' stoneware or porcelain clay is normally one that is dense and strong. Mature clays used for functional ware are dense enough to resist soaking up water. Firing commercial clays at too low ...
- (Glossary) Porosity
In ceramic testing this term generally refers to the pore space within a fired clay body. It is measured by weighing a specimen, boiling it in water, weighing it again, and calculating the increase in weight (thus it is also known by the term absorption). As ceramic clay bodies vitrify in a kiln the...
- (Glossary) Firing Shrinkage
As kiln temperature increases bodies densify (particles pack closer and closer). As temperature continues to rise, some of the particles begin to melt and form a glass between the others that pulls them even closer. Some of the particles shrink themselves, kaolin is an example (in the raw state part...
- (Glossary) Fired Strength
The fired strength of clays can be measured. The test is sometimes called M.O.R. or modulus of rupture, recognizing the fact that brittle ceramics fail suddenly (as opposed to others that fail after some plastic deformation). It is also known simply as tensile strength (because the point of failure ...
- (Glossary) Thermal shock
Thermal shock refers to stresses imposed on a ceramic by the volume changes associated with sudden shifts in temperature. Pouring hot coffee into a cup is a classic example, it is a mild thermal shock common to every day use, almost any type of clay product can withstand this (unless internal stress...
- (Glossary) Plucking
Plucking refers to the chipping away of small fragments of the base of a ceramic vessel because the piece sticks to the kiln shelf during firing. The stuck piece either pops off during kiln cooling (due to the difference in thermal expansion with the shelf) or it needs to be broken off. There are se...
- (Glossary) Stoneware
Most often the term "stoneware" refers to a high fired (about 1200C+) ceramic clay:feldspar:quartz blend that is semi-vitreous (not translucent and not zero porosity). To appreciate the scope that stoneware can encompass it is helpful to contrast it with porcelains (this description is for people wh...
By Tony Hansen
- What is a freestanding house
- What are the best YouTube statistics lectures
- Can I edit someone elses essay
- What are the names that Allah loves
- What is an informal conversation
- Who invented morality
- How do I start a price blog
- Does outsourcing sales work
- Do atheists appropriate theist culture
- Do thoughts or desires hold moral value
- How is oxygen produced
- How does NBA system work
- What should you never mix with water
- Which is better Zumba or the gym
- How did you find your love
- What color car is easiest to maintain
- What is an ADN in nursing
- When should you fear an INTJ
